Interface Integrity Protocol.
Pre-milled Titanium Blanks (Gr23 ELI) with factory-calibrated connection geometries. Engineered to eliminate micro-gaps and ensure screw joint stability.
Industrial Notice
INDUSTRIAL NOTICE: Semi-finished component. Requires CAD/CAM milling. For Dental Laboratories only.
The Physics of Screw Loosening
Risk Addressed
Micro-movement & Bacterial Infiltration
Screw loosening is rarely a screw failure; it is an interface failure. Generic pre-milled blanks often exhibit geometric deviations >20µm, causing rotational play. ValidTi interfaces are machined to a tight tolerance of <5µm, locking the abutment to the implant analog rigidly.

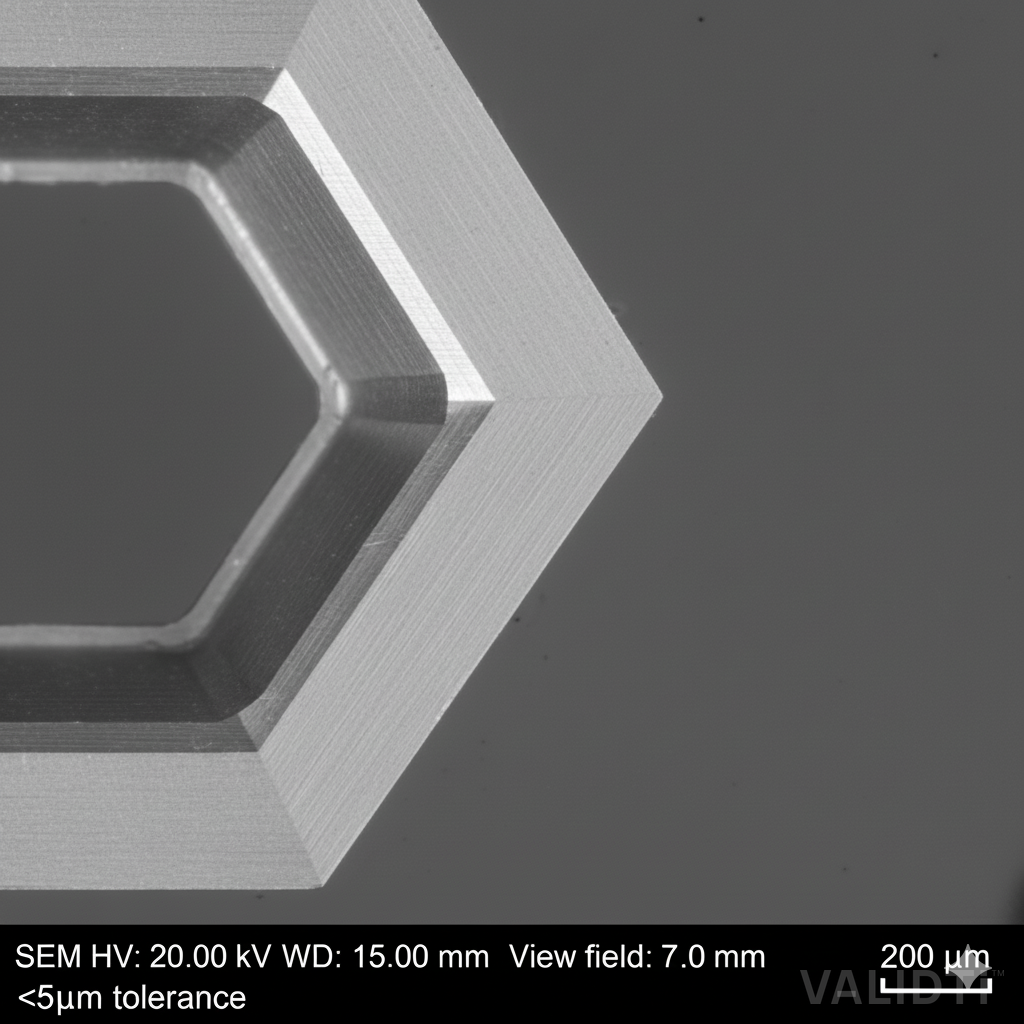

Fig 1. Connection Geometry Definition (50x Mag). SEM showing sharp, crisp angles and smooth surface finish.
System Compatibility Index
ValidTi produces compatible interfaces for the following systems (Not OEM):
Straumann® Bone Level
NC / RC
Nobel Biocare® Active
NP / RP
Osstem® TS
Mini / Regular
Zimmer® Screw-Vent
3.5 / 4.5
CAD/CAM Integration
Our blanks are synchronized with standard CAD libraries for Exocad and 3Shape. Ensure your milling holder matches the blank shank diameter (10mm or 14mm).
Request Library AccessTechnical Specifications
| Specification | Value | Standard |
|---|---|---|
| Alloy Composition | Ti-6Al-4V ELI | ASTM F136 |
| Tensile Strength | 860 MPa (Min) | ISO 5832-3 |
| Interface Tolerance | < 5 Microns | Internal Laser Audit |
| Shank Diameter | 10mm / 14mm | h7 Tolerance |
